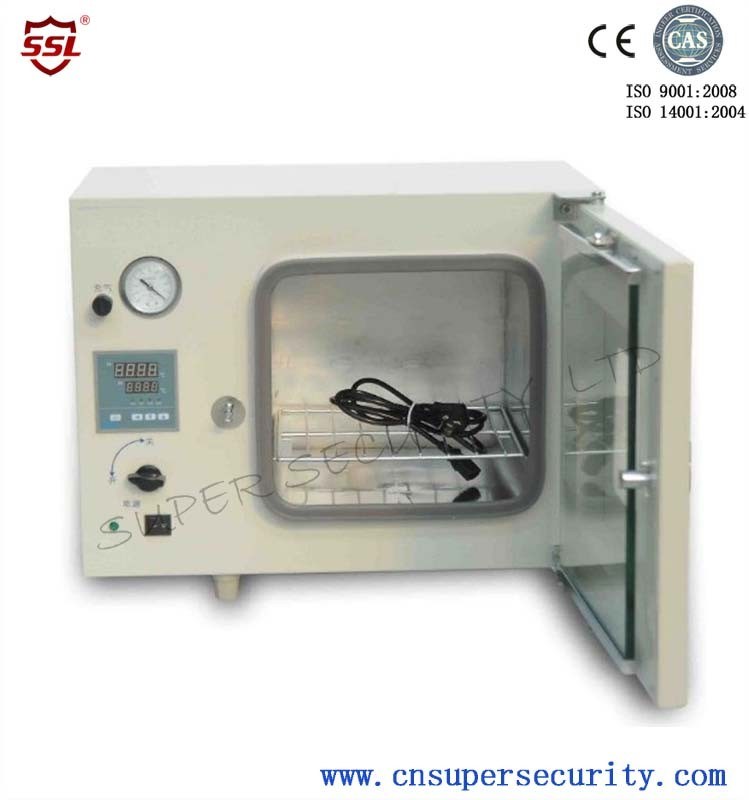

LCD Vacuum Drying Oven

    • LCD Vacuum Drying Oven
    • LCD Vacuum Drying Oven
    • LCD Vacuum Drying Oven
    • LCD Vacuum Drying Oven
  • LCD Vacuum Drying Oven

    পণ্যের বিবরণ:

    Place of Origin: CHINA
    পরিচিতিমুলক নাম: SSL
    সাক্ষ্যদান: ISO9001&14001
    Model Number: VDO9020

    প্রদান:

    Minimum Order Quantity: 5
    মূল্য: Negotiation
    Packaging Details: Standard Paper Box on the Plywood Pallet
    Delivery Time: 15-20 Days
    Payment Terms: T/T or L/C at sight
    Supply Ability: 1500 per month
    এখন যোগাযোগ
    বিস্তারিত পণ্যের বর্ণনা
    product name: Vacuum Drying Oven Feature: small
    material: Stainless steel Cubage: 20L
    Input power: 500W Application: biochemistry, pharmacy, medicine

    20L LCD Vacuum Drying Oven Cabinet for Biochemistry , Pharmacy 800W


    Scope of application:
    Vacuum drying oven is widely applicable for drying and sterilization in fields of biochemistry, pharmacy, medicine and health, agriculture and scientific research and environment protection. It is designed specially for drying of material which is thermo-sensitive or decompounded and oxidative easily.



    Advantages of vacuum dry technology:

    • It has follow advantages compare with the routine dry technology:
    • Vacuum environment greatly reduced the liquid boiling point which needs to drive out, therefore the vacuum dry method is applicable for heat sensitivity material;
    • For the sample that can't be dried easily, such as powder or other pellet form sample, using vacuum dry method may efficiently shorten dry time;
    • Various complex structures of machinery ministry or other porous sample process are used of vacuum dry method after washing, and Completely dry without leaving any residue;
    • Use more safe: under vacuum or inertia condition, completely eliminate the possibility that the oxide heated and explode;
    • Compare with the normal drying depended on air cycle, Powder samples will not be blown or moved by air



     Control Feature:
    Function of parameters memory and electricity incoming recovery when data lost because of power cut or system halted.


    Product Feature:

    • Adopts originated domestic streamline arc design, the outer is made of cold rolled steel plate, the surface is static lacquered;
    • Temperature control system adopts microcomputer single chip technology, with the functions of temperature control, timing and over-temperature alarm;
    • Double screens of high light nixie tube display, the value displayed well, predominant performance, set and adjust parameters by touch type buttons;
    • With the functions of timing and time;
    • The interior chamber is made of stainless steel material, the design of corners semicircular is easy to clean;
    • The tightness of door can be adjusted by user optionally, the silicone rubber door seal whole shaped, ensure the high vacuum degreed in chamber;
    • The chamber is quadrate to maximize the volume, the door adopts steel bulletproof double glass which is easy for observation.




    Production Description

    • Stainless steel chamber. Double Layer tempered glass door for clear observation.
    • Air-tightness of chamber door guarantee in-chamber high vacuum.
    • PID controller with accuracy and reliability.
    • Vacuum oven is designed specially for drying of material which is thermo-sensitive or decompounded and oxidative easily, widely in fields of biochemistry, pharmacy, medicine and health, agriculture and scientific research and environment protection.
    • Can be filled with inert gases, which is especially for a rapid drying of some compound material.

    Name

    Value

    Brand

    SSL

    Model

    VDO9020

    Electrical Requirements

    220V 50Hz

    Temperature Range

    RT+10~250°C

    Temperature Stability

    ±1°C

    Vacuum Degree

    <133pa

    Input power

    500W

    Cubage

    20L

    Ext. sizes(H*W*D)

    580×450×450mm

    Int. sizes(H*W*D)

    300×300×275mm

    Shelves per Chamber (Momal)

    1 pc

    Warranty

    One year




    option

    1.Programmable LCD temperature Controller

    2.Inert Gas Vlave.



    Model

    Overall Size H×W×D(mm)

    Interior size H×W×D(mm)

    Voltage

    Temperature

    range

    Temperature

    stability

    Vacuum degree

    Power

    (W)

    Cubage(L)

    Shelf

    (pcs)

    VDO9020

    450×580×450

    275×300×300

    220V,50HZ

    10~250°C

    ±0.5°C

    <133Pa

    500

    20

    1

    VDO9030

    460×630×520

    300×320×320

    220V,50HZ

    10~250°C

    ±0.5°C

    <133Pa

    800

    30

    1

    VDO9050

    535×720×525

    345×415×370

    220V,50HZ

    10~250°C

    ±0.5°C

    <133Pa

    1400

    50

    2

    VDO9090

    1470×615×590

    450×450×450

    220V,50HZ

    10~250°C

    ±0.5°C

    <133Pa

    2400

    90

    2

    VDO9210

    1750×720×820

    600×560×640

    220V,50HZ

    10~250°C

    ±0.5°C

    <133Pa

    3600

    210

    3

    VDO9250

    910×1050×760

    600×700×600

    220V,50HZ

    10~250°C

    ±0.5°C

    <133Pa

    4000

    250

    3
